JETSON AGX ORIN PCIE 3.0 impedance matching

Mar 04, 2024





HI all.

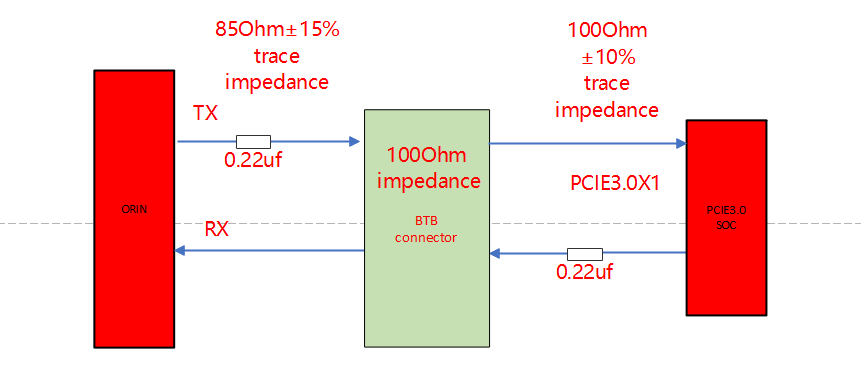

I am working on the layout of the baseboard of AGX ORIN module. The ORIN module is connected to an SOC through PCIE3.0X1. The required impedance of this SOC is 100ohm±15%, and a btb connector with 100ohm impedance passes through the middle.

In this case, how should the line impedance be set? Can we use 0 ohm resistors in series on PCIE tx & rx lines for impedance adjustment?
