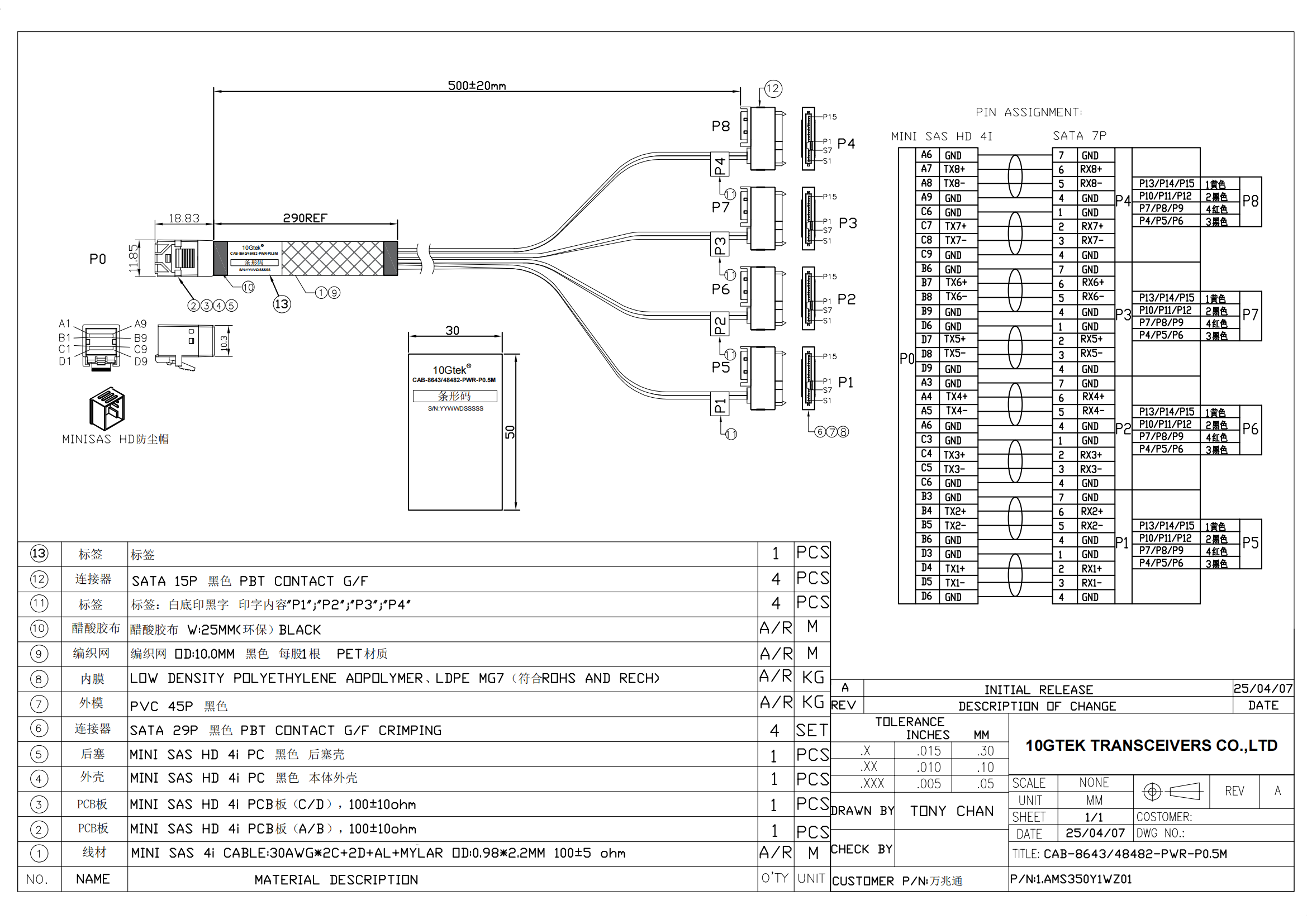

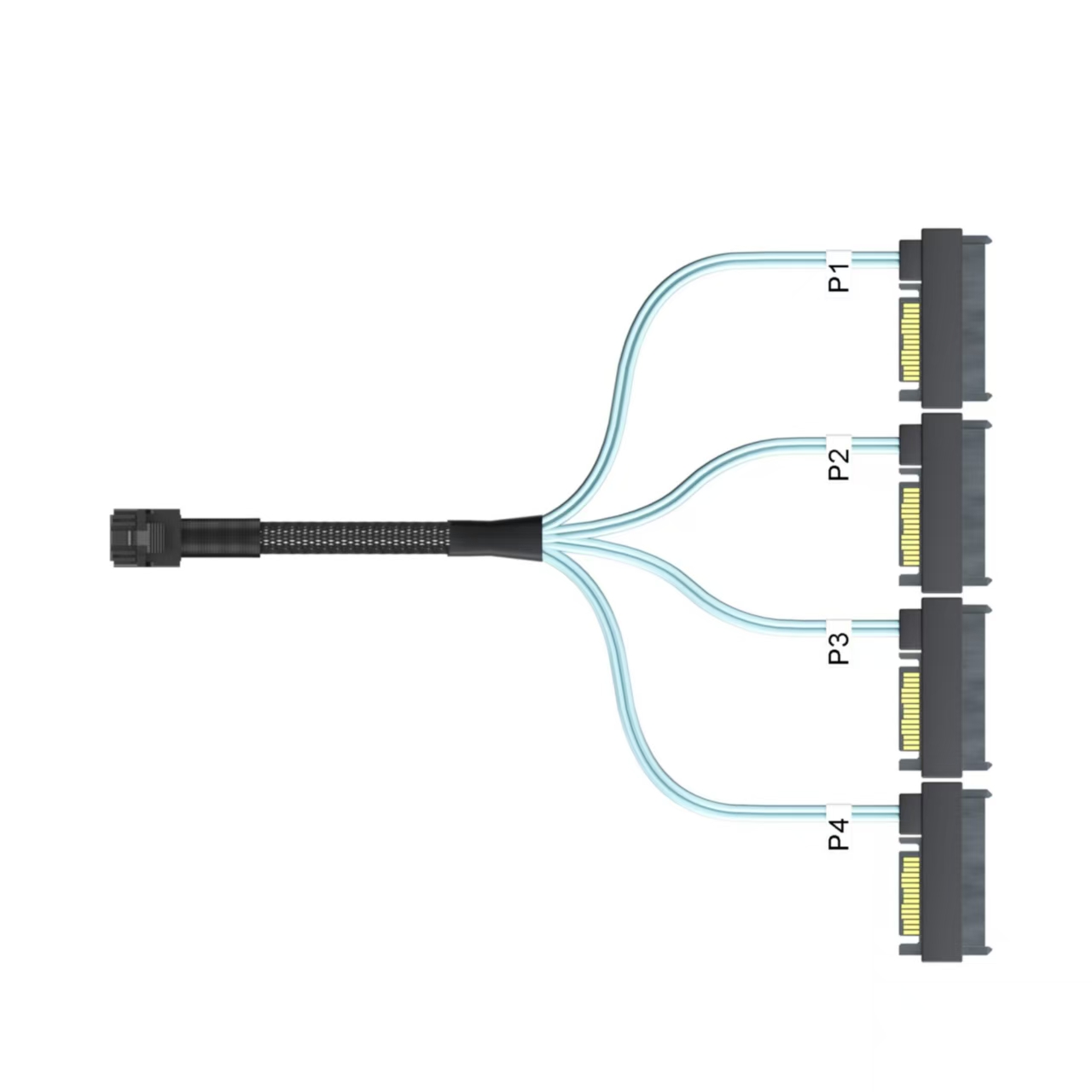

Internal Mini SAS HD (SFF-8643) to 4x SFF-8482 Hard Drive Cable，up to 12Gb/s per lane, with 15-pin Power cord, 0.5~1 Meter

● Host Interface: SFF-8643 (Mini SAS HD) x1

● Target Interface: SFF-8482 (SAS 29-Pin) x4

● Integrated Power: 15-Pin SATA/SAS Power Port cord

● Supported Protocol: SAS 3.0 (12Gb/s), backward compatible with SAS 2.0/1.0 & SATA

● Cable Length: 1 Meter (Approx. 3.3 Feet)

● Cable Gauge: 30 AWG

● Primary Use: Direct connection from a SAS/SATA controller to individual hard drives

【4-Drive Expansion with Built-in Power】Internal Mini SAS HD SFF-8643 to 4x 8482 (29pin) connecting with 4x SATA/SAS drives. Integrated 15-pin power eliminates extra cables.

【12Gb/s SAS 3.0 Speed, Full Compatibility】Supports data rates up to 12Gb/s per lane with SAS 3.0—works with both SAS and SATA drives for servers, NAS, and workstations.

【Controller-Only Use – Critical Note】

  ● SFF-8643 end must plug into a host controller (motherboard/RAID/HBA).

  ● Not compatible with backplane ports—verify your interface before ordering.

【Robust Build, Easy Routing】30AWG wires + full shielding ensure signal integrity. 1m length fits standard server/tower chassis.

【High-quality】High-quality materials and construction ensure reliable data transfer and long-lasting performance. It is ideal for server environments, storage systems, workstations and data centers where efficient and fast data transfer is critical.
